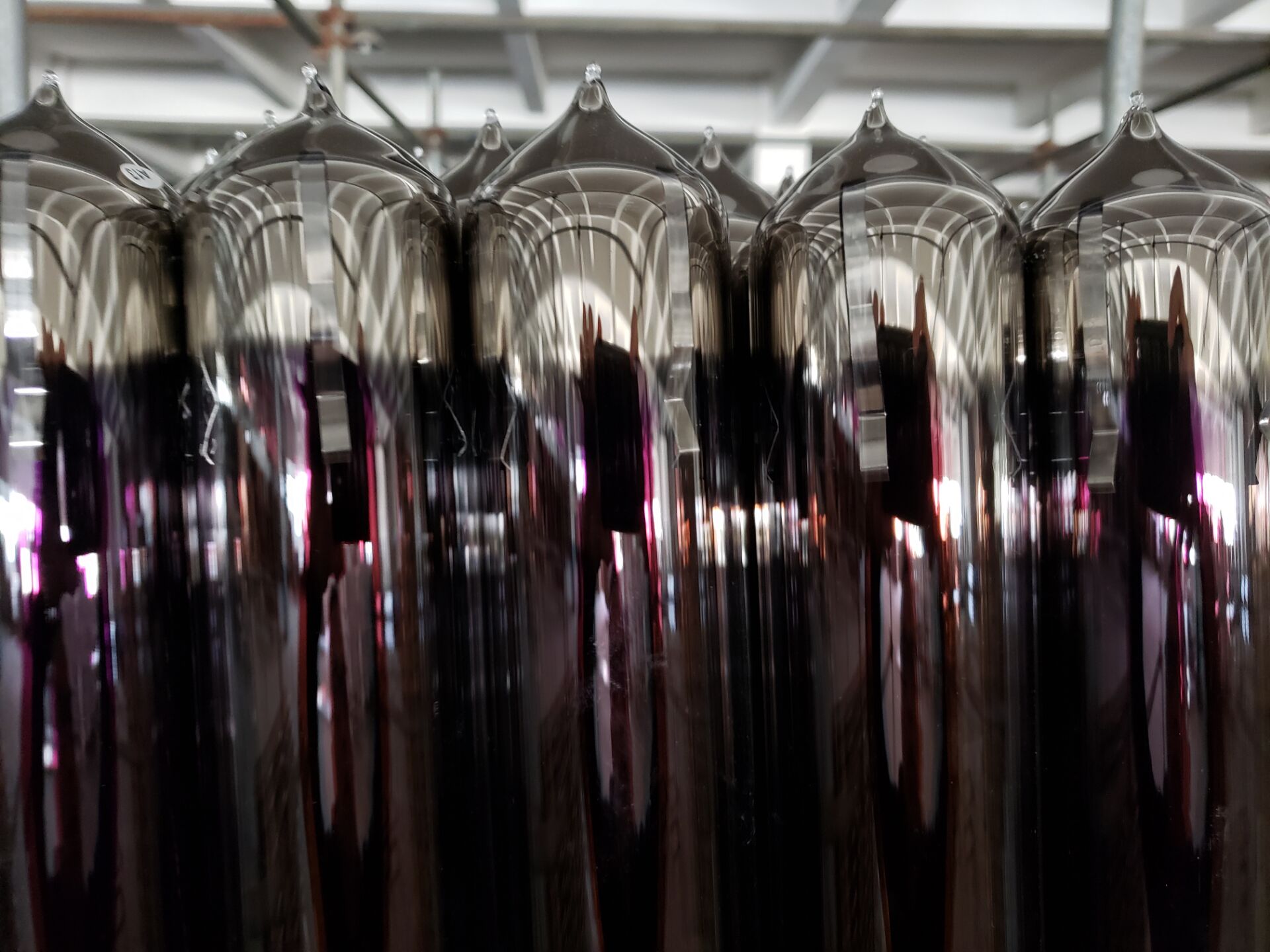

solar vacuum tube
size: 58/1800mm
Characteristics：
Vacuum tubes assimilate the advanced 12 layers of spattering deposition of trivalent technology, high borosilicate glass, gradual change of ALN/AIN-SS/CU selective complex absorptive coating. And these make vacuum tubes have high performance of absorption and low reflection ratio. Through the interlayer, vacuum has a unique effect of thermo, with its temperature up to 380℃ of idle sunning, performing a strong heating ability.
Technical Parameters:
|
Tube structure |
All-glass double deck co-axial structure |
|
|
Glass material |
High Borosilicate 3.3 glass |
|
|
Outer tube diameter and glass thickness |
φ47±0.7mm; Glass thickness 1.6±0.15mm |
|
|
φ58±0.7mm; Glass thickness 1.6±0.15mm |
||
|
φ70±0.7mm; Glass thickness 1.6±0.15mm |
||
|
Inner tube diameter and glass thickness |
φ37±0.7mm; Glass thickness 1.6±0.15mm |
|
|
φ47±0.7mm; Glass thickness 1.6±0.15mm |
||
|
φ58±0.7mm; Glass thickness 1.6±0.15mm |
||
|
Tube length |
800mm, 1200mm, 1500mm, 1600mm, 1800mm, 1900mm, 2000mm, 2100mm, etc |
|
|
Absorption coating property |
Coating material |
CU/SS-ALN(H)/SS-ALN(L)/ALN |
|
Sediment method |
Three target magnetron spattering plation |
|
|
Absorptive ratio |
a=0.92-0.96(AM1.5) |
|
|
Emission ratio |
e=0.04-0.06 (80℃±5℃) |
|
|
Vacuum degree |
P≤5.0x10-3 （PA） |
|
|
Stagnation temperature (temperature inside of empty evacuated tubes |
260-350℃ |
|
|
Average heat loss |
ULT0.4-0.6W/（㎡*℃） |
|
|
Hail resistance |
φ30mm |
|
|
Pressure-endure |
1Mpa |
|
|
|
|
|
